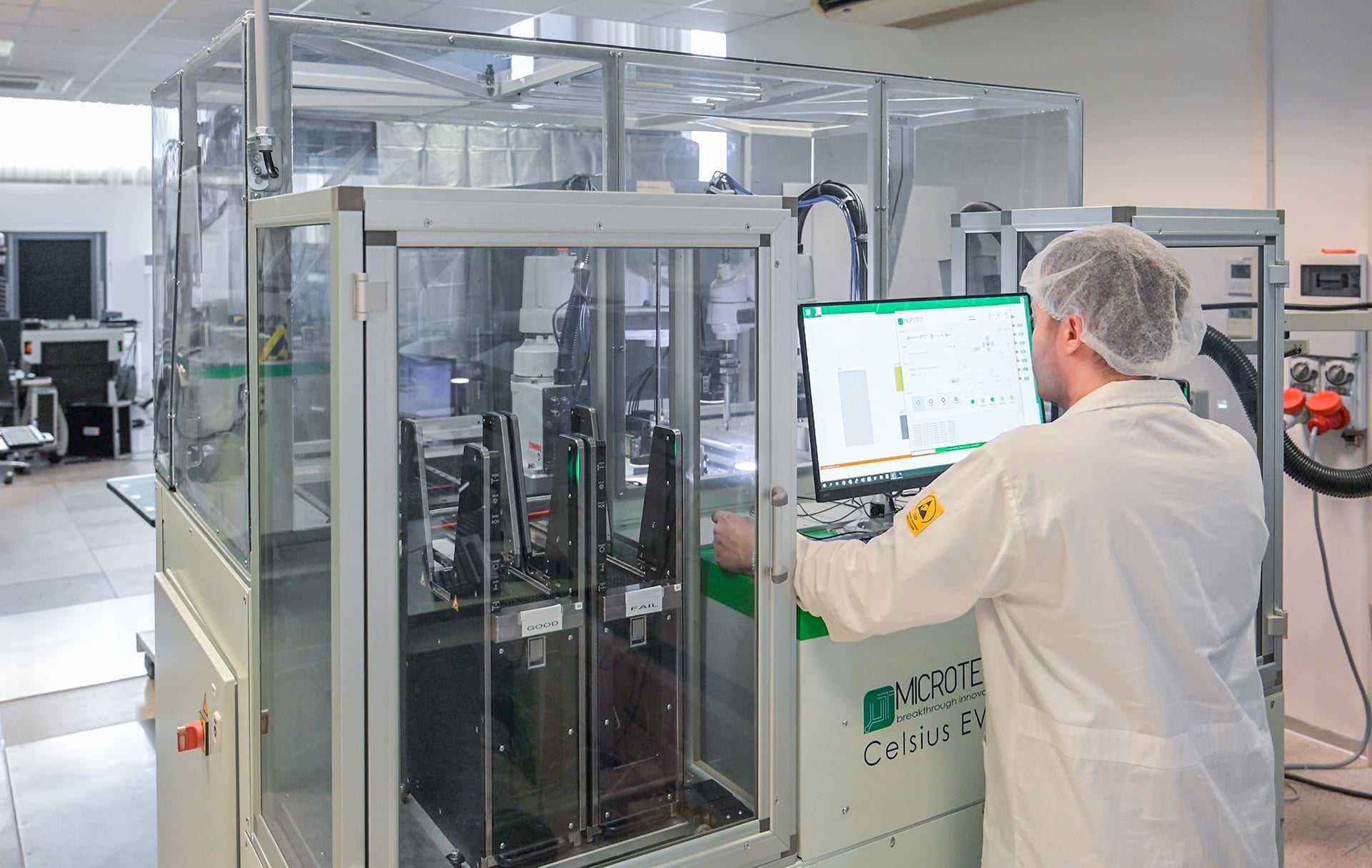

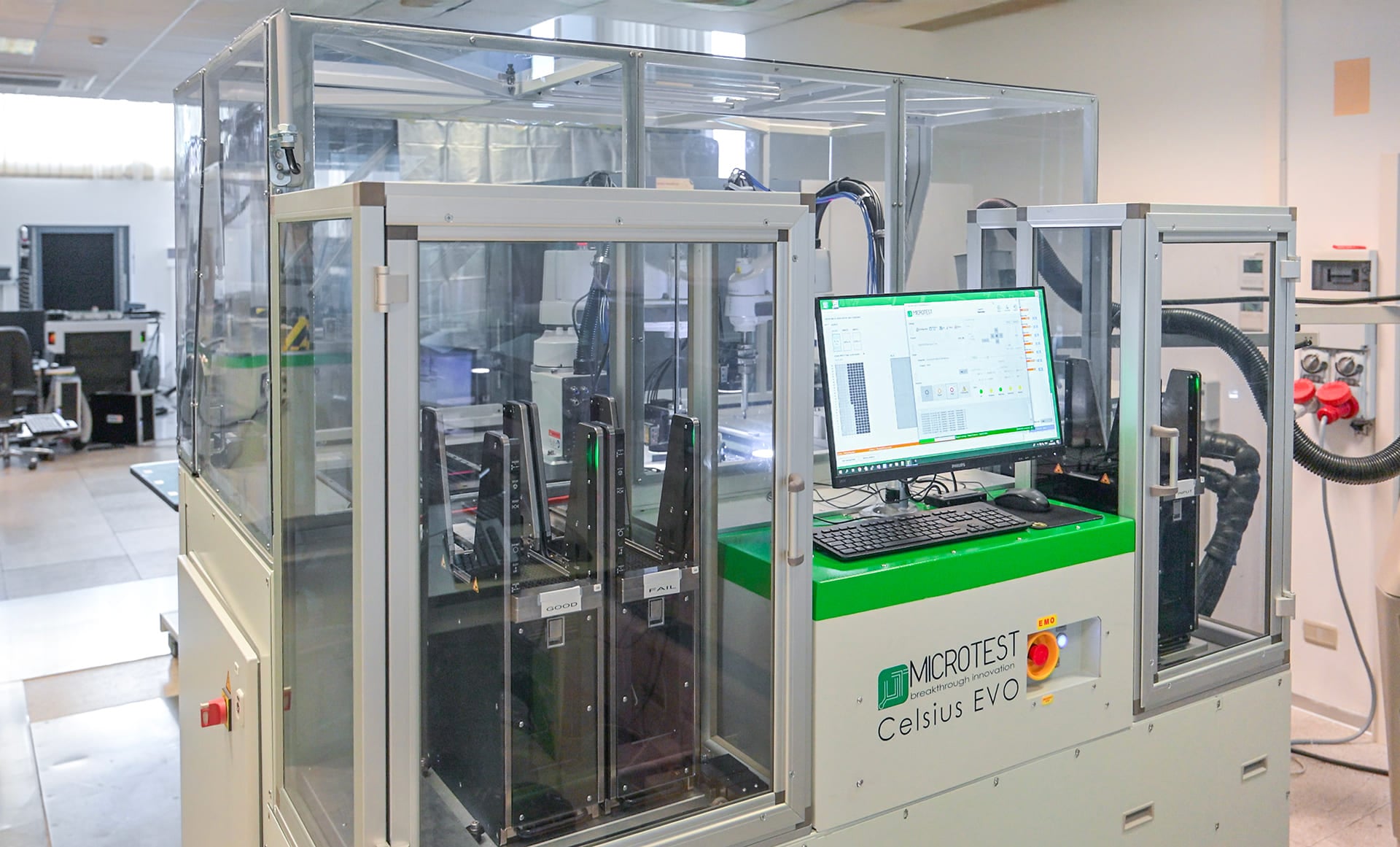

Celsius EVO
HANDLER WITH HIGH THROUGHPUT IN A COMPACT SPACE
Celsius EVO is a characterization pick and place handler with highly dynamic temperature control system that can bring and keep temperature of the DUT up to 150°C and down to -45°C during tests.
Highlights
- Incredibly faster still maintaining a small footprint
- Innovative heater technology for higher temperatures
- Automatic visual inspection and positioning correction
- Highly dynamic temperature control system during tests (up to 150° C and down to -45°C)
- No need to condition the entire workspace
- Time and energy saving solution and reduced need of conditioned air
Key Features:
- DUT dimension (Customizable also for chipboards) min.: 2x2mm max.: 30x30mm
- Temperature control: 3T handler: -45°C/+150°C ±3°C
- Input / Output: 3 automatic conveyors with 20 trays max for each (1 input + 2 output) & 4 manual trays
- Consumption Compressed Air: l/min 200 @ 8 bar
Dimensions
Height:
2000 mm
Width:
21000 mm
Depth:
1600 mm
